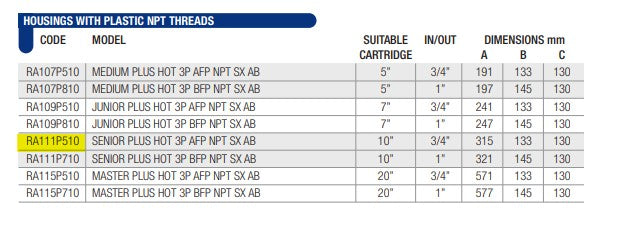

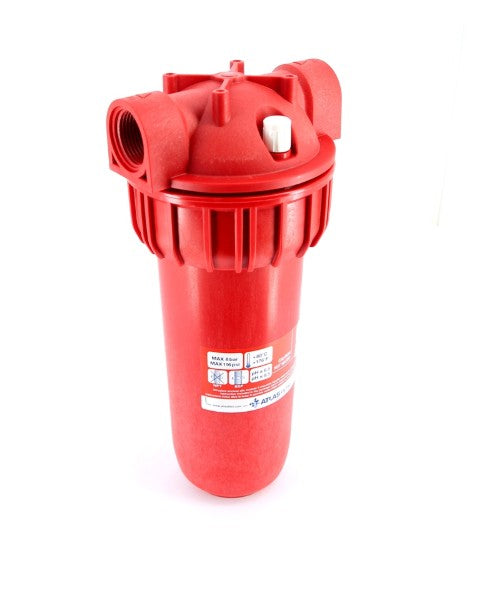

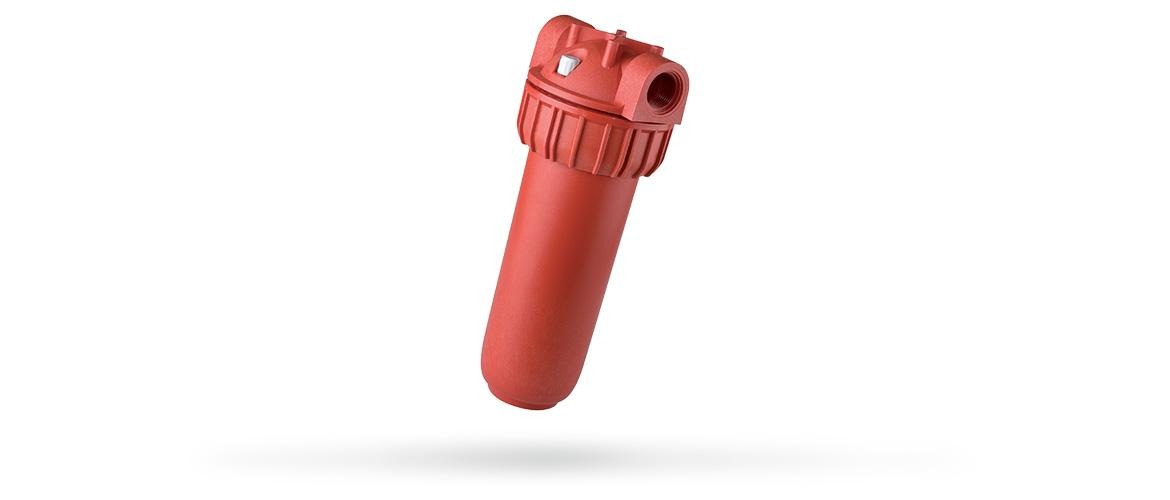

MASTER PLUS HOT WATER HOUSING 2P 20" BFP NPT SX AB, 2.5"X20", 1" / RA115P710 - FPAF0085
For use only with SX 10 micron 2.5" x 20" Hot Water Thread Cartridge (FPAF0031)
Requires FPAF0074 Wall Mount and FPAF0081 3P Housing Key. Sold separately.
FA 20 SX (DOE) HOT WATER FILTER CARTRIDGES FOR DP HOT HOUSINGS HAVE A 2.5” DIAMETER AND A 20” HEIGHT WITH A NOMINAL FILTRATION OF 10 MICRONS.
These cartridges are manufactured with pure polypropylene yarn wound around a reinforced polypropylene center core. They can be used to remove sand, rust, and other suspended sedimentsfor residential, commercial, and industrial applications.
Technical characteristics:
Wound filter cartridge with reinforced central core designed for hot water filtration.
Wound wire filter cartridges with 2.5 mm outer diameter for depth filtration of sediment in hot water
SX Cartridges: Double Open End (DOE)
Exclusive for Master Plus Hot 2P 20" cases
Filter medium: polypropylene thread
Central core: reinforced polypropylene
Maximum operating temperature: 80°C (176°F)
Average duration: 3-6 months
Maintenance: none
Use with potable water. Do not use with microbiologically impure water or water of unknown quality.
