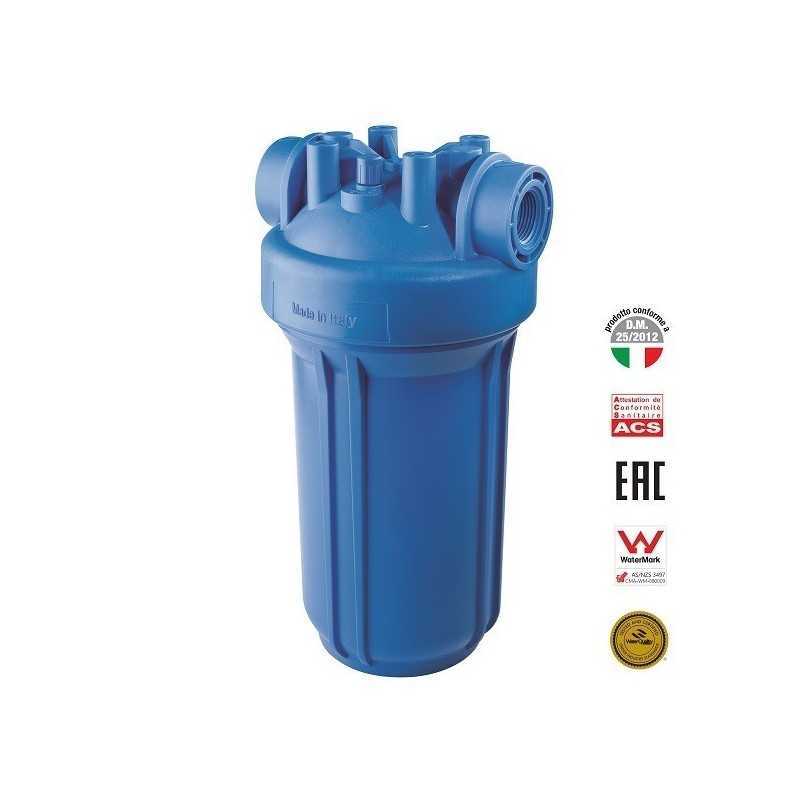

BIG 10 Blue Filter Housing - MONO 4.5"x10", 1" NPT

DP BIG 10 MONO HOUSING 1" NPT IN AB / RA1700722 - FPAF0069

Requires FPAF0079 Simple Wall Mount Bracket and FPAF0083 O-Ring Lubricant. Sold separately.

ATLAS FILTRO DP BIG WATER FILTERS ARE PROTECTIVE HOUSINGS SPECIFICALLY DESIGNED FOR SX (DOE) FILTRATION CARTRIDGES WITH A 4.5” DIAMETER.

Thanks to the 1" and 1.5" IN/OUT connections with NPT plastic threads, the DP BIG adapts to any high-capacity filtration requirement for domestic or industrial use. DP BIG water filters are available with transparent or opaque blue cups in 10" and 20" heights; and are available in MONO, DUO, and TRIO versions, for a series filtration sequence and single-block collectors, without the risk of water loss.

The constant application of advanced technologies has allowed Atlas Filtri to respond innovatively to market demands; for this reason, the DP BIG cartridge filter housings are internationally patented solutions.

Technical characteristics:

• Water filters for large capacities
• DP BIG models with 2 pieces
• MONO, DUO and TRIO versions
• Suitable for 4.5” SX (DOE) cartridges
• 1" and 1"½ female IN/OUT connections with NPT plastic thread
• Transparent (TS) or opaque blue (AB) glasses
• Cartridge heights that can be installed: 10” or 20”
• Materials: reinforced polypropylene, PET
• Patented protective boxes
• Maximum operating temperature: 45°C (113°F)
• Maximum operating pressure: 8.3 bar (120 psi)
