WATTS
Folded cartridge 4.5" X 20" - 1 micron
Folded cartridge 4.5" X 20" - 1 micron
Couldn't load pickup availability

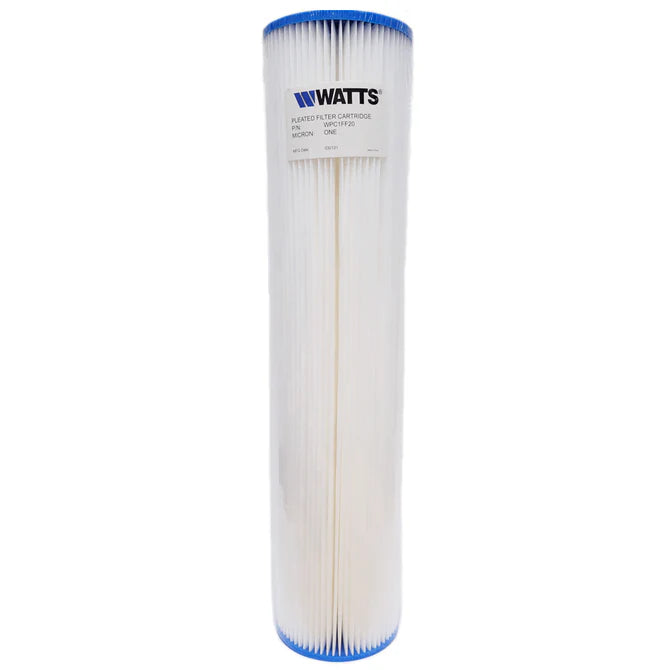

4.5" X 20" FOLDING CARTRIDGE MODEL WPC1FF20, 1 MCR - FPWT0049
Watts WPC1FF20 Full Flow Pleated Filter Cartridges - 4-1/2 x 20 - 1 Micron
• Manufacturer: Watts
• Series: WPC (Watts Folded Cartridges)
• MPN: WPC1FF20
• Filter Media/Type: 100% Synthetic Pleated Media
• Outside diameter dimensions: 4-1/2" x 20"
• Inner diameter (core) dimensions: 1-1/6"
• Micron classification: 1 micron
Watts WPC1FF20 pleated filter cartridges outperform wound, spun, melt-blown, resin-bonded, and other "depth" style filter elements because our pleated cartridges provide greater surface area, lower pressure drop, and longer filter life. Our 100% synthetic media is washable and cleanable, five microns and up, to reduce filtration costs. Standard features of Watts brand pleated filters.
• The filter media is pleated
• 100% synthetic medium WITHOUT cellulose
• Individually wrapped for purity
• Washable and reusable, 5 microns and larger
• 2-3/4 OD filters have color-coded end caps (tan: 1 micron / white: 5 micron / blue: 20 micron / yellow: 50 micron)
• Only 4-1/2 OD filters color coded with blue Benefits of Watt brand pleated filter cartridges
• Greater dirt holding capacity; more surface area
• Lower initial pressure drop; Higher flow rates
• Longer lifespan
• Lower filtration costs
• Superior performance without additives or binders that break down and can cause foaming and filter degradation.
• Greater security at no additional cost.
• Lower filter replacement costs.
• Easily identify standard OD replacements. Washable and reusable: Watts pleated cartridges are washable and reusable, five microns or larger, to reduce filtration costs. For best results, spray directly onto the pleats to dislodge sediment. Watts Pleated Filter Specifications.
• Maximum temperature: 140°F (60°C)
• Minimum temperature: 40°F (4.4°C)
• Maximum pressure: 40 psid
• Recommended gear ratio: 25 psid
• Filter medium ( 1 and 5 microns): polypropylene
• Filter media (20 and 50 microns): polyester
• Center tube material: polypropylene
• End cap material: molded polyurethane
• ID: 1-1/6”
