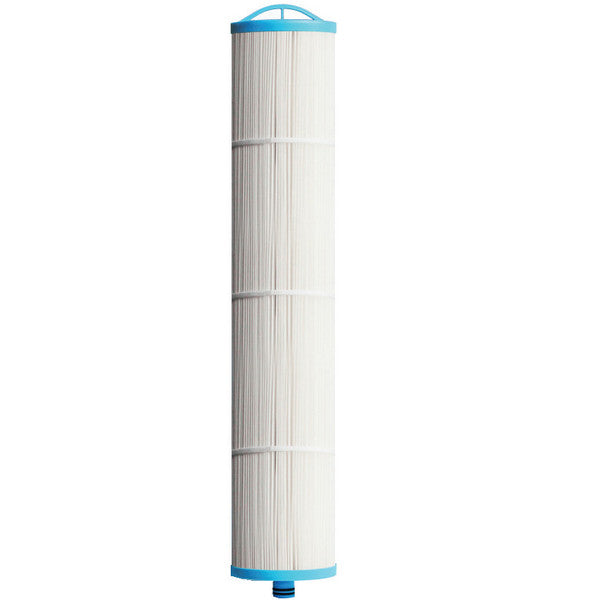

SCT-20NANOAG DOUBLE GRADIENT FOLDED CARTRIDGE, 20 MCR - 0.2 MCR / 68107705

SCT-20NANOAG Dual Gradient Pleated Cartridge, 20 MCR - 0.2 MCR / 68107705 - for ONE Cartridge Tank® Filtration System Housing

The Green Filtration Series consists of electropositively charged, bi-pleated, dual-gradient filtration solutions that effectively remove contaminants from 1 to 0.2 microns, using NanoAl™ filter media. The cartridges are designed with a larger 20 micron external pre-filtration layer and internally charged filter media, extending filtration life and reducing contamination while achieving high flow rates and low pressure drop.
All cartridges incorporate Agion® antimicrobial technology, which provides built-in protection by operating 24/7, resisting the growth of microbes.
Each cartridge includes a top cap with a unique handle for easy, lightweight removal, a bag for proper disposal, and a double O-ring bottom connection to the Cartridge Tank® plumbing adapter for the 2½" assembly and 1¼" PVC adhesive connector flow connections.

Features and benefits
• Double-gradient pleated cartridges with electropositively charged NanoAl™ media
• Buna-N double O-ring seals
• Filter bands
• PAC solution option
• Agion® antimicrobial technology
• Guarantees the absence of contaminant derivation and high chemical compatibility
• Prevents filter collapse in high flow or high contaminant load applications

Two filter configurations:
SCT-20NANOAG: 20 micron external pleated pre-filter, with NanoAl™ pleated inner filter with Agion® Biostat
SCT-20NANOPACAG: 20 micron external pleated pre-filter, with PAC NanoAl™ pleated inner filter with Agion® Biostat and carbon block core

Applications
• Primary filtration instead of microporous membranes
• Makeup water (particle and microbe control)
• Polishing filters (carbon fines, emulsified oil removal)
• Reverse osmosis prefiltration (SDI reduction)
• Process water (turbidity, particles, colloidal suspensions)
• Wastewater (biological, proteins, dyes)
• Cooling towers, cold water circuits (iron removal)
