FEMALE ELBOW CONNECTOR 1/2" CTS X 1/2 FNPS

FEMALE ELBOW CONNECTOR 1/2" CTS X 1/2 FNPS / F3520-1008

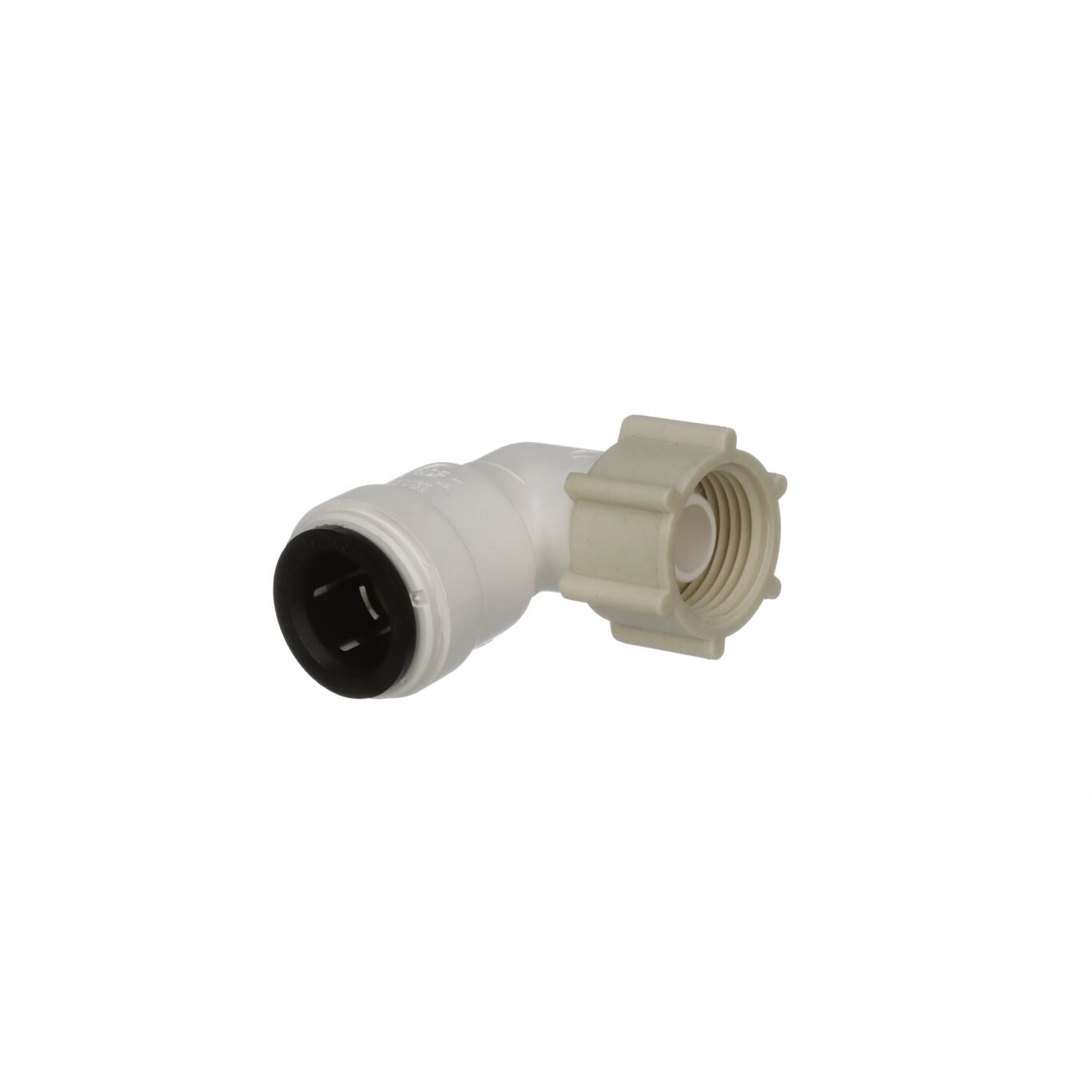

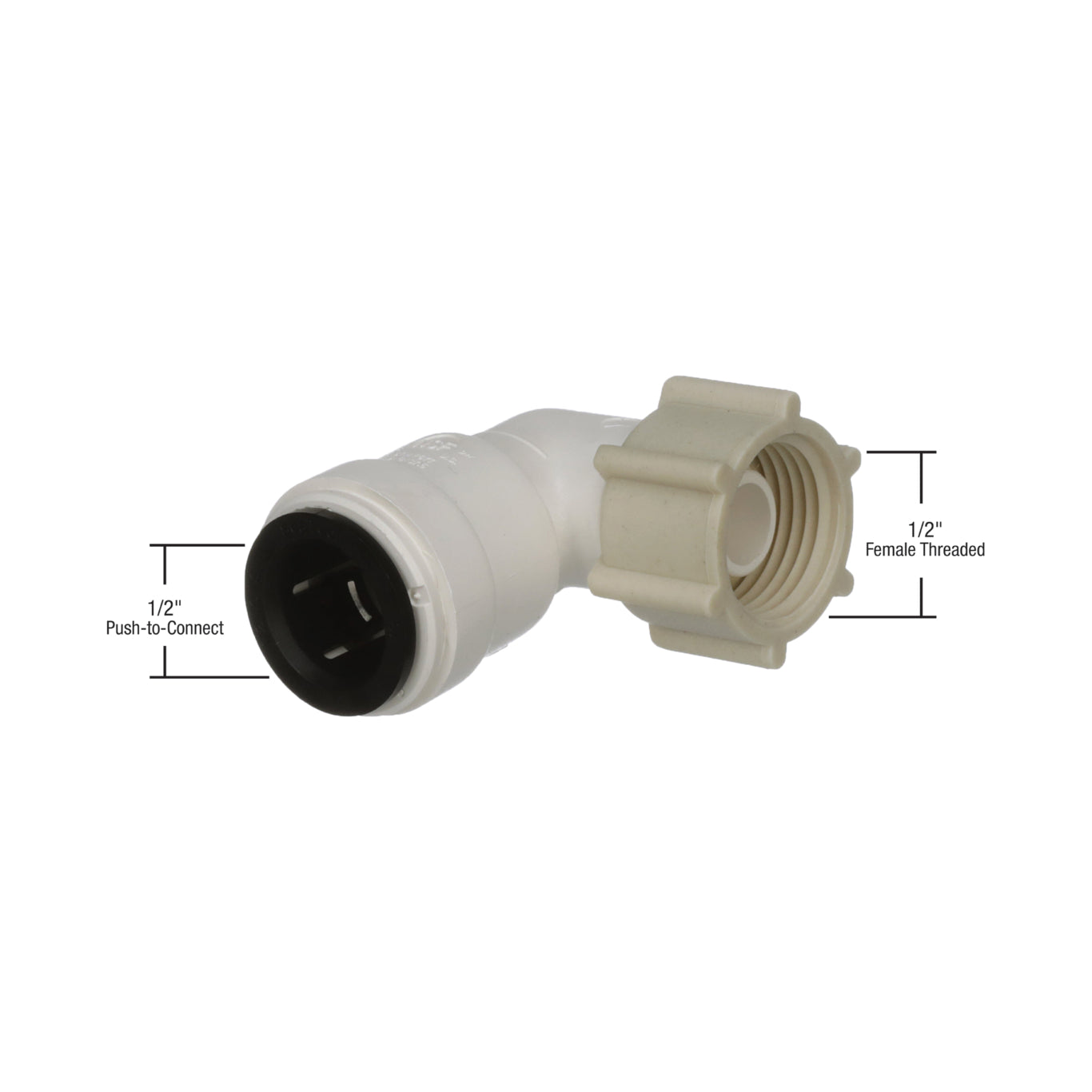

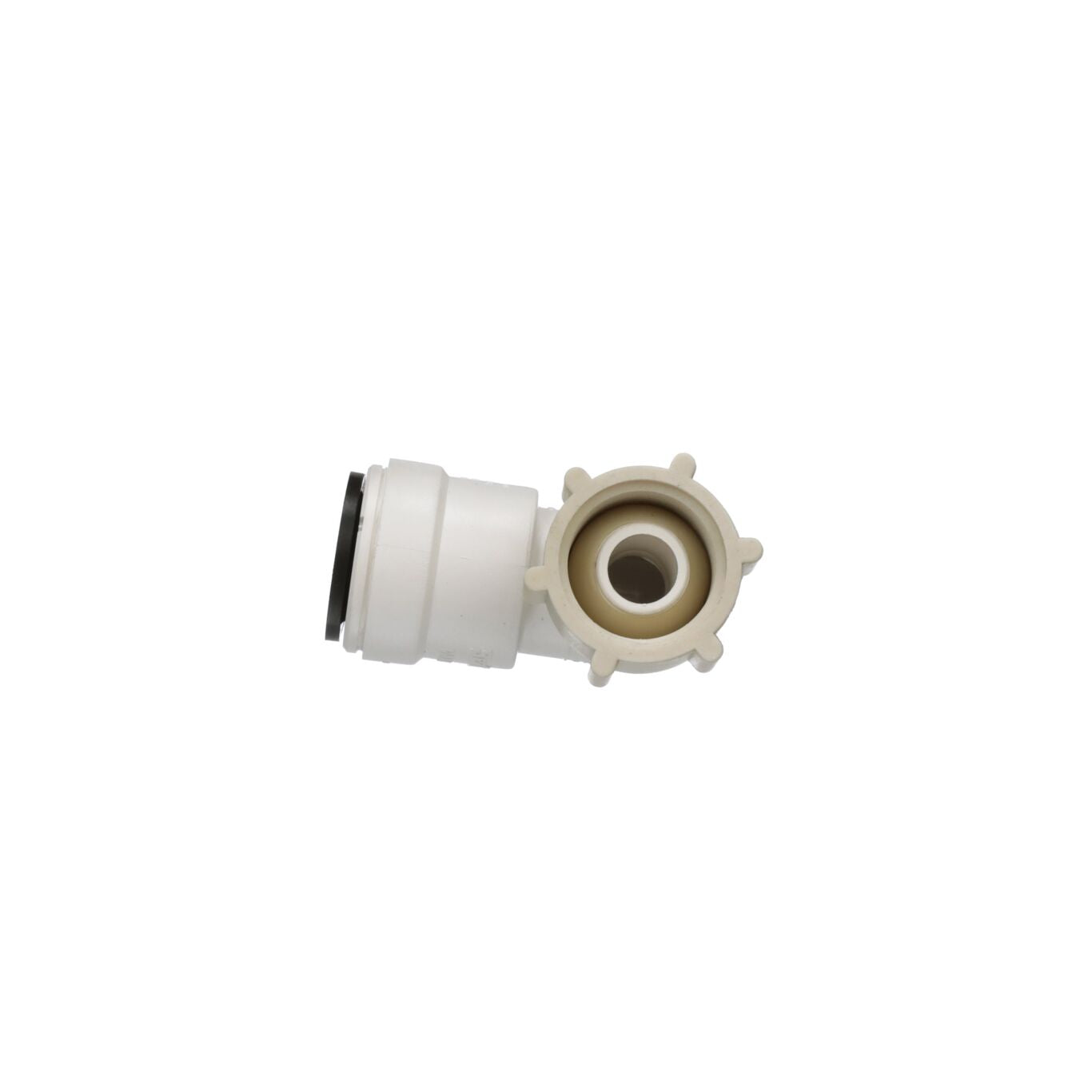

This AquaLock™ 1/2-inch CTS x 1/2-inch female plastic swivel elbow
inch NPS is compatible with copper, CPVC, PEX and CTS pipe.
It is easy to install and requires no tools or inserts.
The fitting is compatible with hot and cold water applications.
Its unique O-ring guide provides a leak-free connection.
Unlike barbed fittings, this one joins the pipe by the
exterior, which increases the flow capacity. After connection, even
Under maximum pressure, the pipe can rotate, making it ideal for
applications with vibrations and dynamics.

Characteristics:

No tools are required for installation or removal. It rotates under pressure once installed, providing great
flexibility during installation. It can be used for hot and cold water applications, including
behind-the-wall applications. Works with copper, CPVC, PEX, and CTS pipe.
Leak-free connections.

Specs.
Brand: Watts.
Complies with the Buy American Act (BUY AMERICAN).
EAN: 098268299373.
Inlet connection size: 1/2 in.
Inlet connection type: Push-in connection.
Unleaded.
Maximum working pressure: 17.25 bar.
Maximum working pressure: 250 psi.
Maximum working temperature: 24.00 °C.
Maximum working temperature: 75 °F.
Minimum temperature: 0.56 °C.
Minimum temperature: 33 °F.
Outlet Connection Size: 1/2 in.
Outlet connection type: Female thread.
Outlet thread type: NPSM.
Part number: 0959090
3520 Series Female Swivel Elbow NOT Suitable for Gas Service
