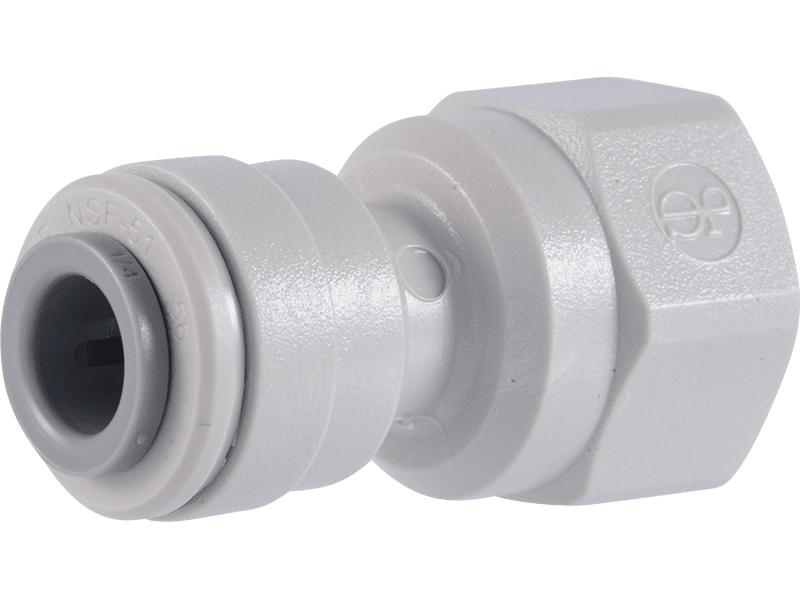

1/4 CTS x 3/8 NPTF FEMALE GREY CONNECTOR

GRAY FEMALE CONNECTOR 1/4 CTS x 3/8 NPTF / PI451222S / JOHN GUEST - FPWT0220

For connecting outside diameter tubing to male NPT threads. Makes installations easier and faster. JG Push-fit technology simplifies and speeds up tubing connection. The fittings are made of gray acetal with a food-grade nitrile O-ring, making them especially suitable for food and potable liquid applications. They are also suitable for air and inert gases, so they can be used in CO2 and nitrogen lines for beverages, pneumatics, vacuum systems, and other applications.

Features and benefits:

For use with plastic or copper outside diameter tubing
Acetal body, nitrile O-ring
Quick and easy connection/disconnection
Food grade, suitable for drinking liquids and pure water
NSF51 and NSF61 Certified Lead-Free Materials
Suitable for air/pneumatic and vacuum applications
Suitable for inert gases, CO2 lines and beverage nitrogen

Working pressure and temperature:

Sizes: 5/32-5/16 in.
Max. 230 psi at 20 °C
Max. 150 psi at 65 °C

Sizes from 9.5 to 12.7 mm
Max. 150 psi at 20 °C
Max. 100 psi at 65 °C
