Hydra 90 micron self-cleaning filter 3/4" NPT
Hydra 90 micron self-cleaning filter 3/4" NPT
Couldn't load pickup availability

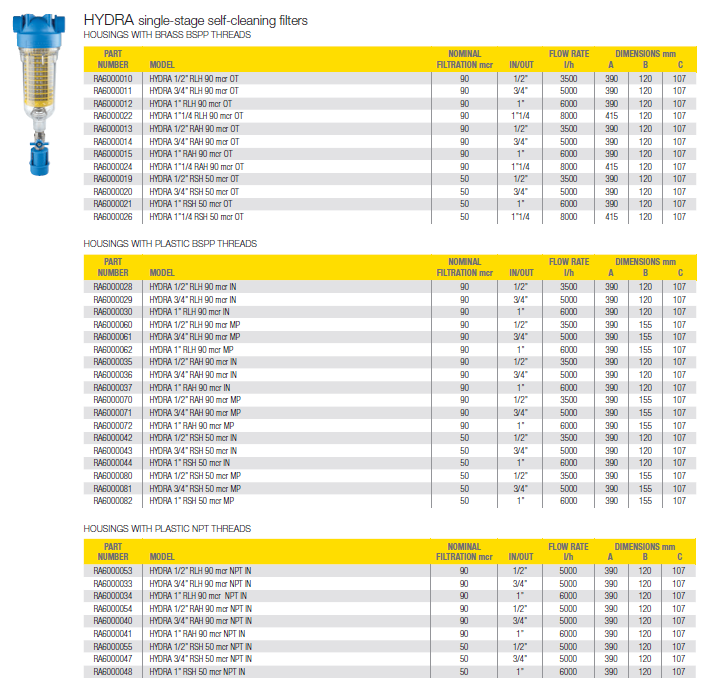

HYDRA FILTER 3/4 NPT IN RLH 90 MCR / RA6000033 - FPAF0056
Self-cleaning sediment filter with 90 micron polyester mesh and 3/4" NPT plastic thread.
ATLAS FILTRI'S HYDRA SELF-CLEANING FILTER FEATURES A BACKWASHING SYSTEM FOR EFFICIENT SEDIMENT REMOVAL.

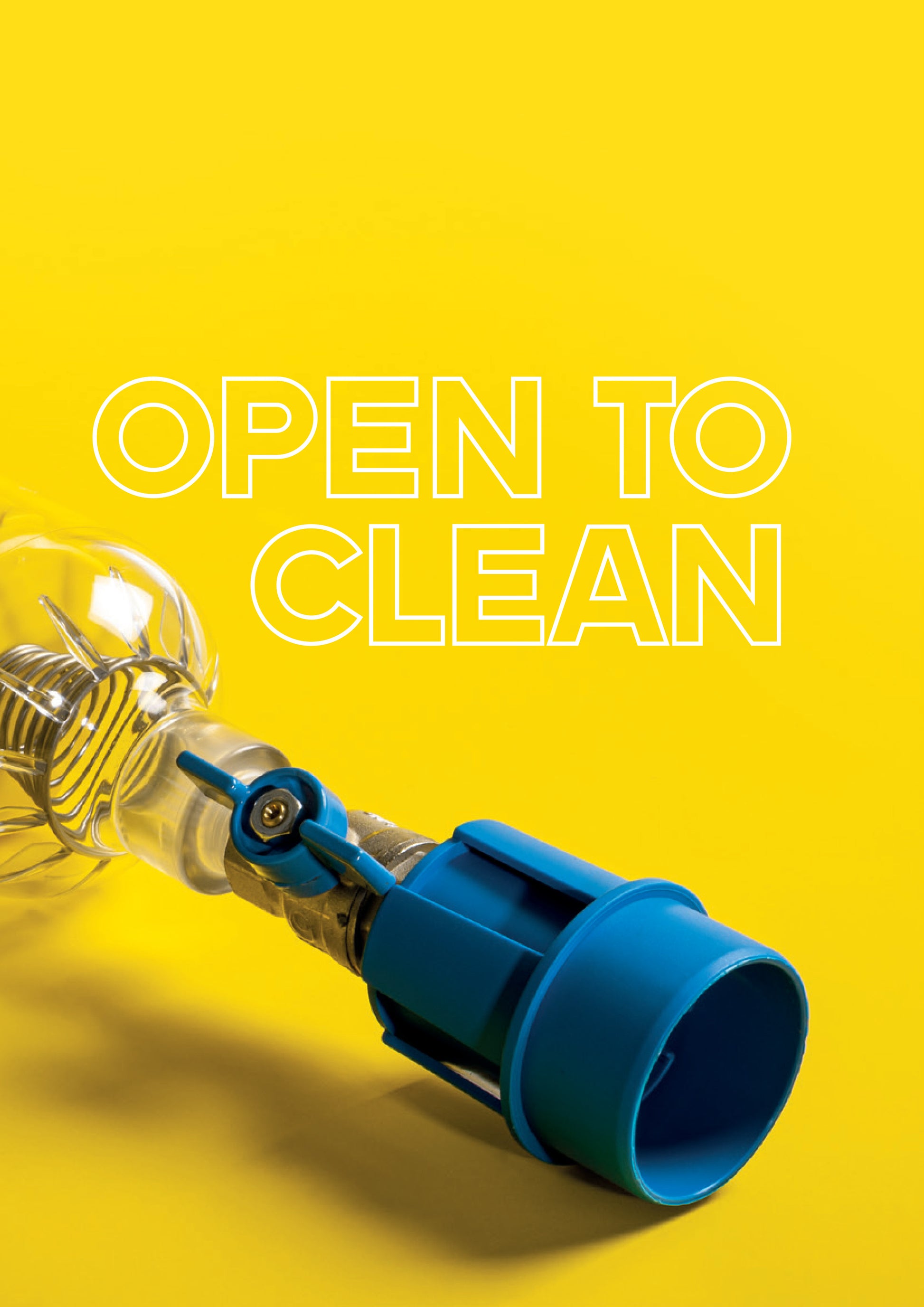

Cleaning operations are simple and accessible to anyone; they can be performed manually by opening the drain ball valve located at the bottom of the filter, or automatically, thanks to the dedicated auto kit. The efficiency of the process is guaranteed by the drainage system designed to prevent the return of expelled water.
The Hydra self-cleaning water filter is suitable for special RLH SX (DOE) cartridges with polyester mesh designed for a 90-micron filtration level. The IN/OUT connections are available with 3/4" NPT plastic threads and have a capacity of 5,000 l/h.
Self-cleaning filters are certified by leading international organizations that attest to their quality and performance, in compliance with current standards.

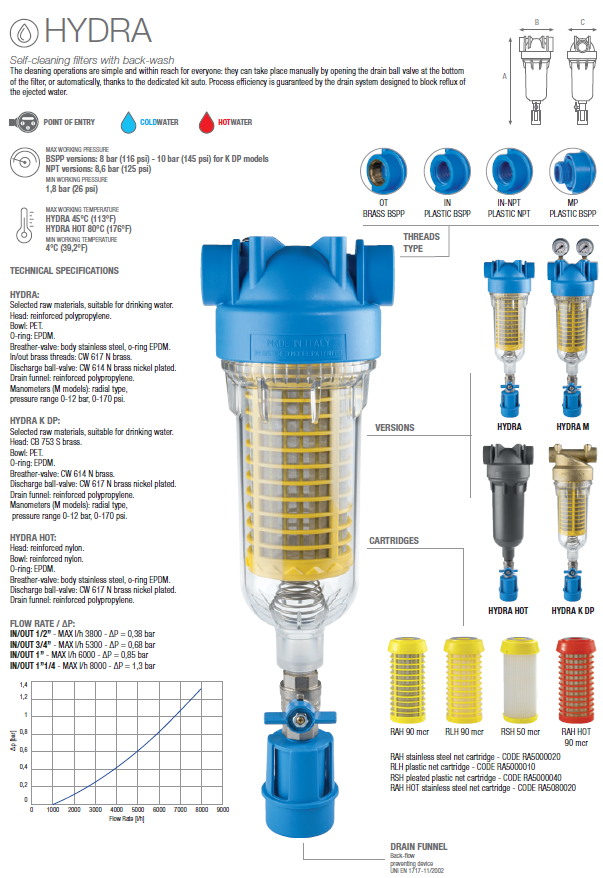

Technical characteristics:
- Self-cleaning water filter with self-cleaning system using backwashing
- Suitable for SX (DOE) RLH cartridges with polyester mesh
- 3/4” female IN/OUT connection
- NPT plastic thread
- Head: reinforced polypropylene
- Cup: PET
- Drain valve for manual cleaning
- Ready for the auto kit
- Anti-pollution from the reflux drainage system
- Capacity of 5,000 l/h
- Maximum operating temperature: 45°C (113°F)
- Maximum operating pressure: 8 bar (116 psi)
