Self-cleaning filter HYDRA BIG 1-1/2 NPT IN RAH TS 90 MCR

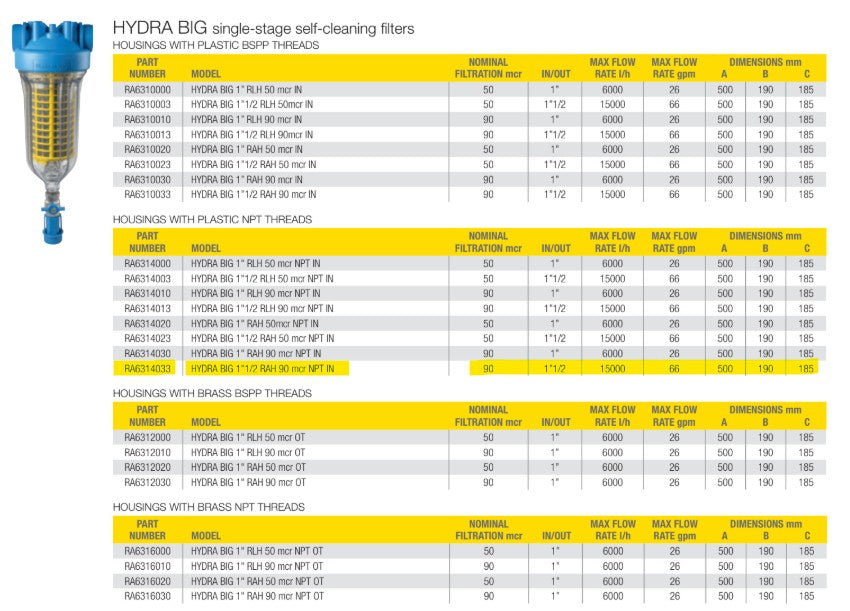

Self-cleaning filter HYDRA BIG 1-1/2 NPT IN RAH TS 90 MCR / RA6314033 - FPAF0089

Self-cleaning sediment filter with 90 micron stainless steel mesh and 1 1/2" NPT plastic thread.

ATLAS FILTRI'S HYDRA SELF-CLEANING FILTER FEATURES A BACKWASHING SYSTEM FOR EFFICIENT SEDIMENT REMOVAL.

Cleaning operations are simple and accessible to anyone; they can be performed manually by opening the drain ball valve located at the bottom of the filter, or automatically, thanks to the dedicated auto kit. The efficiency of the process is guaranteed by the drainage system designed to prevent the return of expelled water.

The Hydra self-cleaning water filter is suitable for special RAH SX (DOE) cartridges with stainless steel mesh designed for a 90-micron filtration level. The IN/OUT connections are available with 1 1/2" NPT plastic threads. The recommended capacity range is 15,000 l/h.

Self-cleaning filters are certified by leading international organizations that attest to their quality and performance, in compliance with current standards.

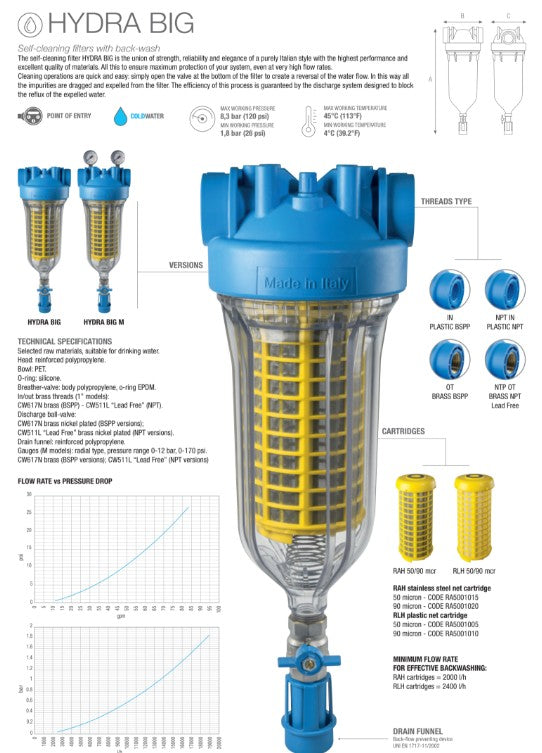

Technical characteristics:

• Self-cleaning water filter with self-cleaning system using backwashing
• Suitable with SX (DOE) RAH stainless steel cartridges.
• 1 1/2” female IN/OUT connection
• NPT plastic thread
• Head: reinforced polypropylene
• Cup: PET
• Drain valve for manual cleaning
• Ready for the auto kit
• Anti-pollution from the reflux drainage system
• Capacity of 15,000 l/h
• Maximum operating temperature: 45°C (113°F)
• Maximum operating pressure: 8.3 bar, 0-120 psi.
