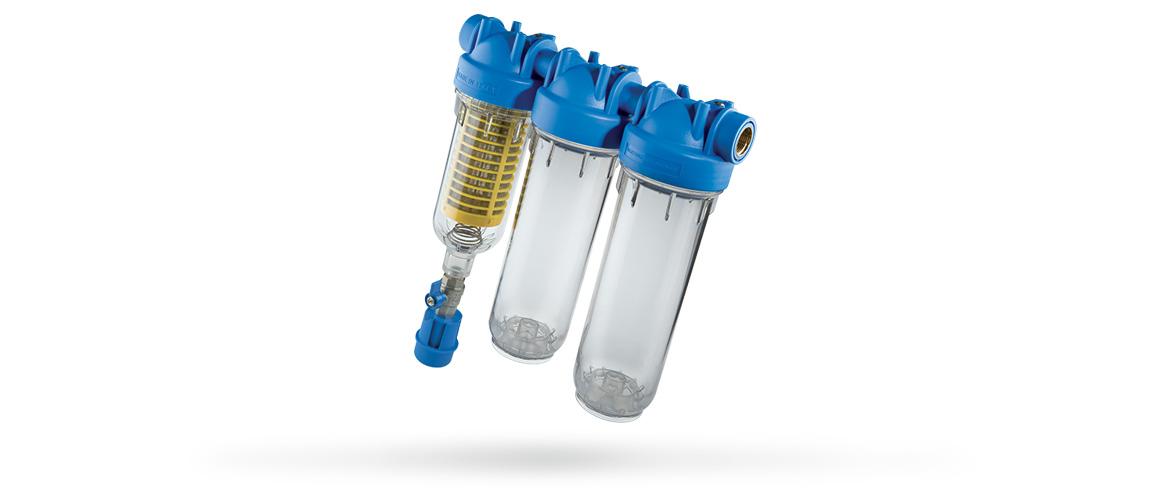

Self-cleaning, three-stage sediment filter with 1" NPT plastic threads. The first stage consists of a 90-micron stainless steel mesh. Users can choose cartridges of different materials and filtration levels for the second and third stages for depth filtration.
ATLAS FILTRI'S HYDRA TRIO SELF-CLEANING FILTERS DIFFER FROM OTHER FILTERS ON THE MARKET THANKS TO THEIR THREE-STAGE TREATMENT WITH A SELF-CLEANING PRE-FILTER AND POST-FILTRATION CARTRIDGES.
The first stage features a stainless steel mesh SX (DOE) RAH cartridge. During this phase, backwashing removes coarse sediment from the cartridge's outer surface and expels it through the dedicated drain equipped with an anti-reflux system.
In the next two stages, any SX-type cartridge can be used to further refine filtration or treat the water. It has IN/OUT connections with 1" NPT plastic threads.
Hydra Trio self-cleaning water filters are certified by leading international organizations that attest to their quality and performance, in compliance with current standards; and they are subject to exhaustive quality controls to ensure satisfactory efficiency in the applications for which they were designed.

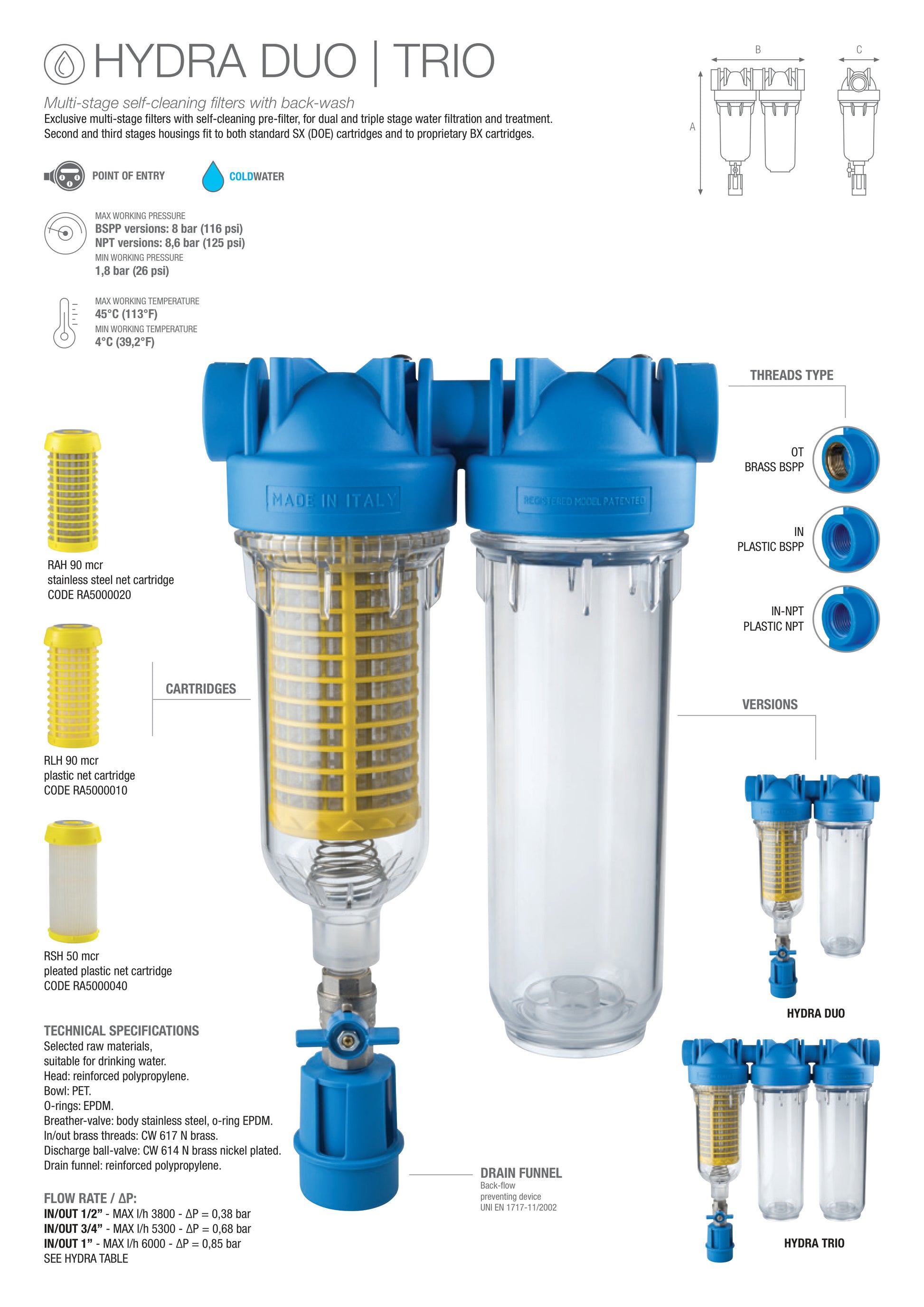

Technical characteristics:
Three-stage water filter with self-cleaning pre-filter
SX (DOE) first stage RAH cartridges with 90 micron stainless steel mesh. SX (DOE) cartridges for the second and third stages
1” female IN/OUT connections with NPT plastic thread
