STAINLESS STEEL FOLDING CARTRIDGE SA 10 TO SX 50 MCR / RA5055114 - FPAF0023
Washable cartridge.
Nominal filtration of 50 microns.

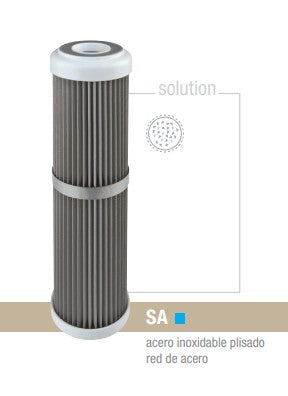

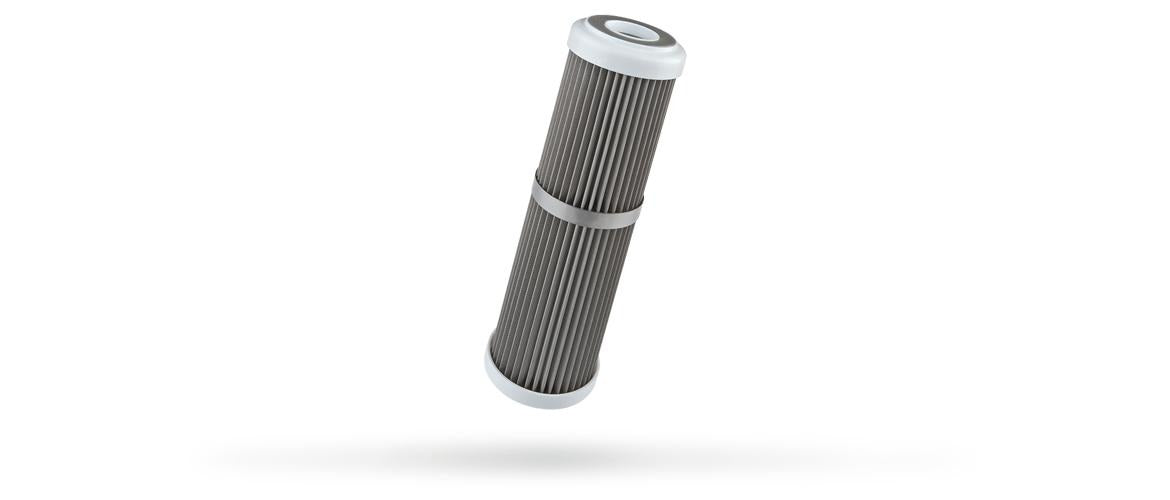

SA SX (DOE) WASHABLE NET FILTER CARTRIDGES ARE FILTER ELEMENTS WITH A FOLDED STAINLESS STEEL STRUCTURE SUPPORTED BY A CENTRAL POLYPROPYLENE CORE.

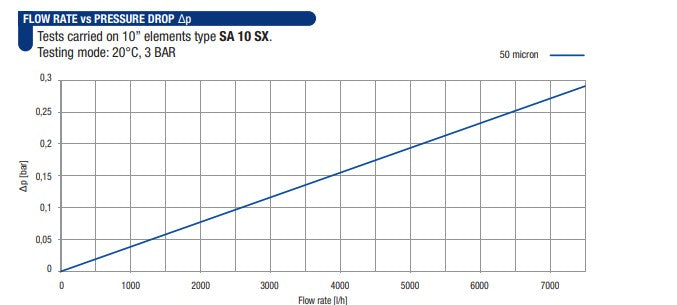

They are characterized by a high filtering surface area, and their washing allows the cartridge to be restored to its initial condition; as well as high capacity and low pressure drops.
With a filtration degree of 50 microns, it is made of AISI 316 stainless steel.

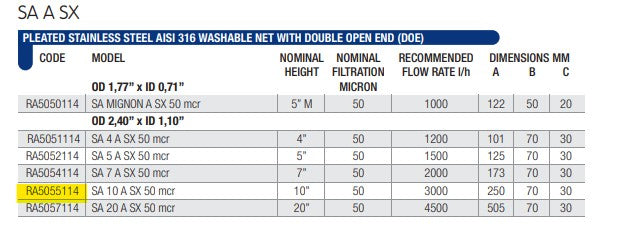

Pleated filter cartridges are available in 2.5" x 10" sizes. Recommended maximum capacity is 4,000 l/h.
Technical characteristics:
Washable pleated stainless steel cartridges for coarse sediment filtration
SX Cartridges: Double Open End (DOE) with antimicrobial flat seals
Suitable for DP housings.
Filter medium: AISI 316 stainless steel mesh
Inner core and end caps: polypropylene
Maximum operating temperature: 80°C (113°F)
Average duration: approximately 3-5 years.
Maintenance: wash every 1-3 months
Use with potable water. Do not use with microbiologically impure water or water of unknown quality.
