A105 2" RISE STEM VALVE - MIPG0376
A105 2" RISE STEM VALVE - MIPG0376
Regular price
₡ 253.000,00
Regular price
₡ 188.000,00
Sale price
₡ 253.000,00
Unit price
/
per
Couldn't load pickup availability

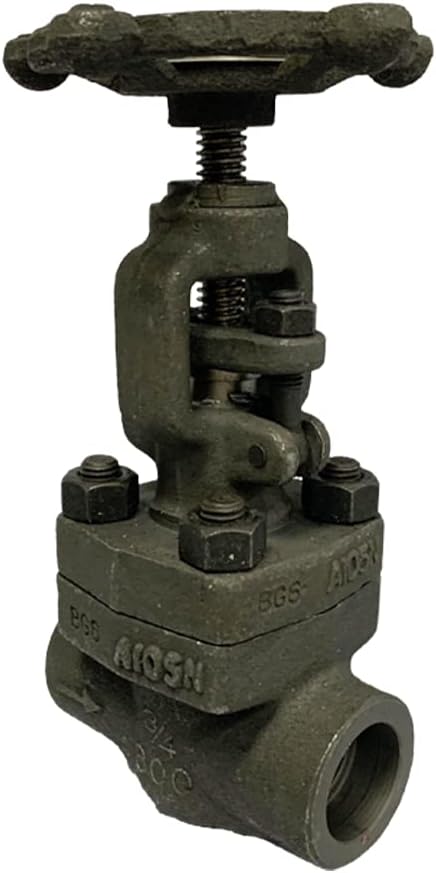

A105 2" RISE STEM VALVE - MIPG0376

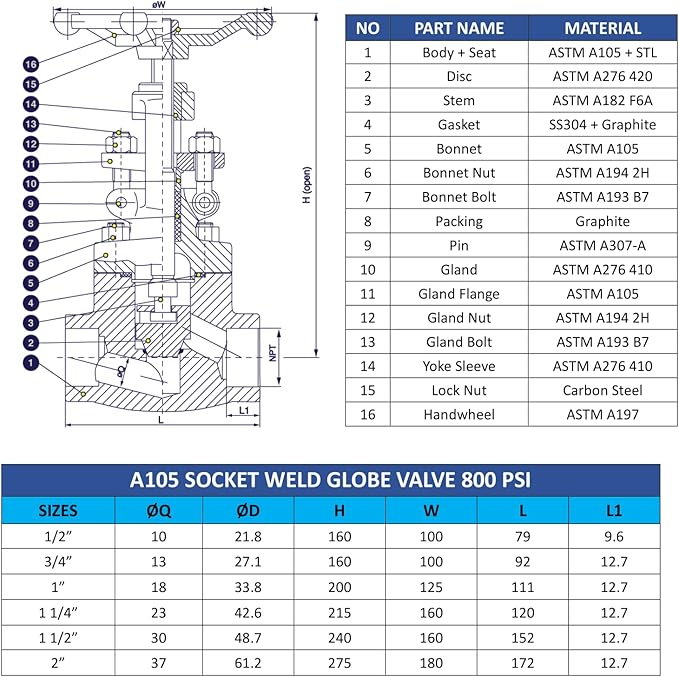

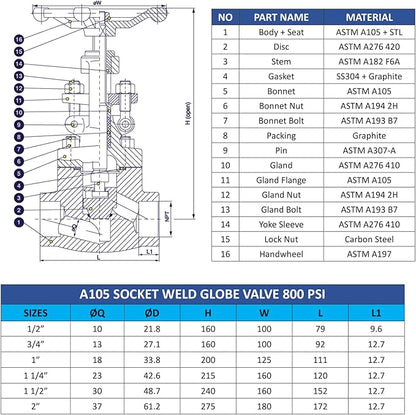

A globe valve is used to control, stop, and allow fluid flow where precise flow is required. The valve body is globe-shaped and consists of several parts, including the body, bonnet, stem, cage, and seat. When the stem is rotated to the open configuration, the valve plug rises from the seat, allowing fluid to flow through. Inside the globe valve, the disc can be adjusted to redirect the flow or completely stop the flow path.
- To control and allow precise flow.
- Advantages include the ability to handle large pressure changes, unidirectional fluid flow, and excellent sealing capability.
- Made of A105 forged steel.
- Maximum working pressure up to 800 PSI.
- The body of the globe valve is of spherical design.
- Applied in fuel oil or cooling water systems, boiler vents and drains
- Manufactured according to API602/BS5352 design.
